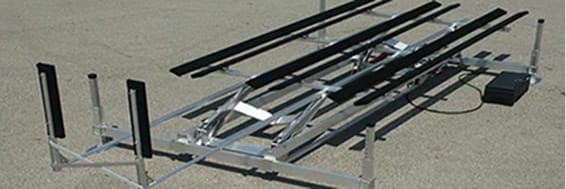

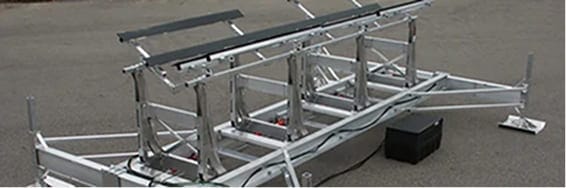

Summit Marine Lifts PATENTED LIFT DESIGN

boat docks

Overview:

Cylinders – 2.5” bore x 20” stroke, dual acting. PATENTED Retract lift system.

Pump System – Monarch Fluid Power, 2,500 psi, 4 way valve, 12 volt system. 1/4” hose assemblies.

Fluid – Completely biodegradable.

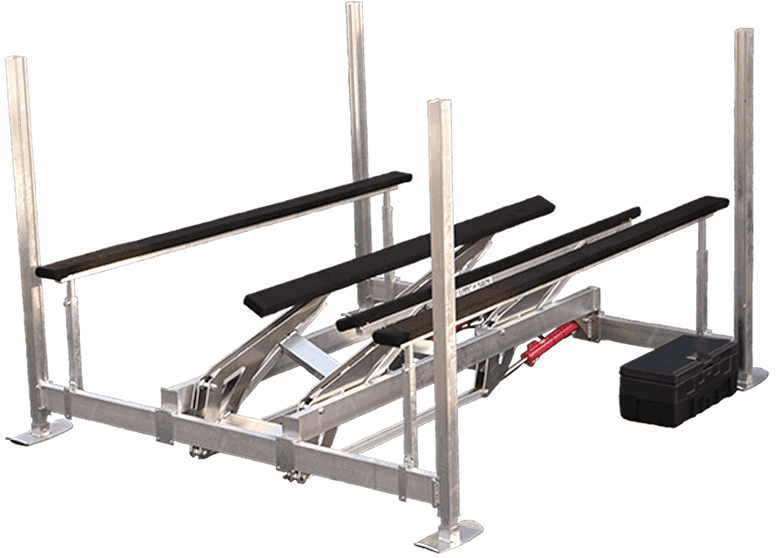

Hydraulic Boat Lift Specifications

Model HL 4400 Pontoon HL 4400P HL 6000 HL 8000 HL 12000 HL14/18/24
Capacity # 4,400 4,400 6,000 8,000 12,000 14000 to 24000
Lift Height 40 40 40 40 40 40
Weight - frame only 243 243 303 397 550 1200+
weight - cylinders 52 52 104 104 156 156+
Beam Width 114 114 120 132 132 150
Bunk Length 120 192 144 168 192 216-264
Power Source (not included) 1@12 volt 1@12 volt 1@12 volt 1@12 volt 2@12 volt 24 volt
        Water Depth 18" + 1/2 of boat draw for all models. Pontoon requires 0" with 40" beam, 6" with 120" beam.



Features and Benefits

  • Strong lightweight marine grade 6005 aluminum. Years of trouble free service.
  • Strong 2 x 6 tube used for beam members. 33% stronger than 2 x 5, and 56% stronger than 2 x 4.5”.
  • Stainless Steel hardware. Eliminates rusting problems, eliminates premature failure from worn pins.
  • Monarch Fluid Pump System. Well recognized and trusted name in the industry, thoroughly tested.
  • Patented Retract Lift System. Cylinders close as the lift elevates – protecting cylinders from scale buildup and Zebra Mussel problems, the # 1 cause for premature cylinder failure. US Patent 5,890,835.
  • Larger cylinders than its competitors. Allows for 32% reduction in working pressure. Less wear on gears, motor, hoses, fittings and cylinder seals (the #2 cause for cylinder failure). Less strain on the pump motor translates to greater battery life.
  • 12 volt power. Safe, clean power at the lake shore.
  • Quick disconnects keyed one way. Easy to disconnect, reconnection cannot be done wrong.
  • Biodegradable fluid. Same high quality power fluid used by the logging industry to protect our forests.
  • Swivel bunk supports. Adjust to your hull’s dead rise.
  • Changeable foot pad tube. Allows the customer to change the foot height tube without purchasing the whole assembly.
  • Interchangeable leg assembly. Less expensive to change to canopy uprights later or change beam widths.
